EBox-AIO-003
The EBox-AIO series is built around low-power, high-efficiency Cortex®-Ax CPUs running embedded Linux, positioned for industrial communication and control applications.
Micro SD Storage Expansion
Expands system storage; slot fitted on every model
Product Highlights
Low-Power Compute Core
ARM Cortex-A7 64-bit multi-core RISC processor — low power consumption, suited to continuous operation.
Multiple Communication Interfaces
Ethernet, RS-485, RS-232 and USB interfaces are offered by model, connecting field devices that use different transport standards.
Embedded Linux OS
Ships with an embedded Linux operating system for deploying your own applications and services.
Field Environment Suitability
Operating temperature −20 to 70 °C at 20–80 % RH — mountable in control cabinets in unconditioned plant rooms.

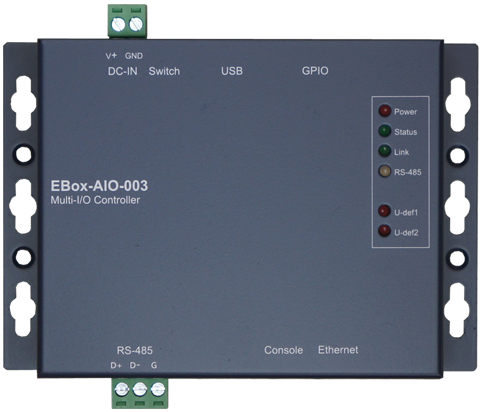

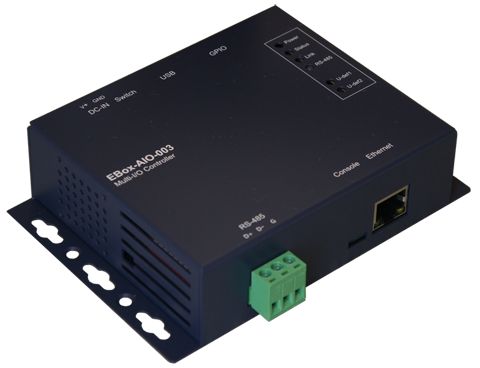

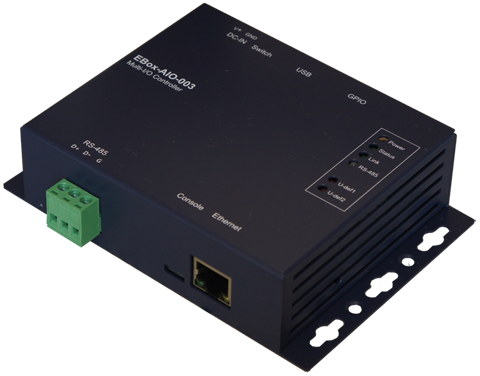

I/O Interfaces
Power In
DC power input
DIP Switch
Mode select
USB Port
USB 2.0 (480 Mbps)
GPIO
Digital I/O points
Status LEDs
System status indicators
RS-485
Modbus-RTU bus
Console
Serial debug console
Ethernet
10/100 Mbps port

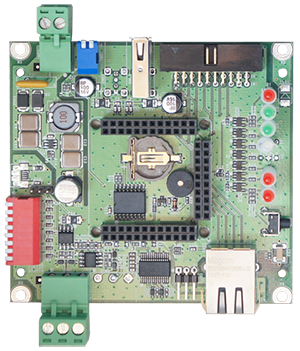

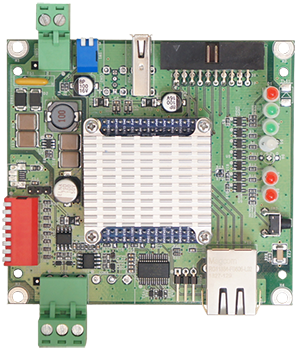

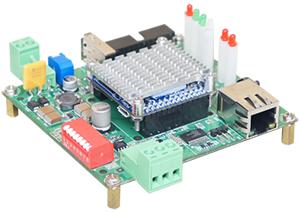

Board Version
LLD-AIO-003
Host core module: NanoPi NEO Core／Core2
1-Channel 100/1000Mbps Ethernet communication interface
2-Channel RS-485 serial equipment data transmission communication
12 Digital Control Points (GPIO)
Hardware Specifications
Full datasheet (PDF) →Core | |
|---|---|
| CPU | Allwinner H3 1.2GHz (Cortex®-A7) |
| Memory | 512MB |
| Storage | 8GB eMMC (capacity configurable) |
| GPIO | 19 points |
I/O Interfaces | |
| Ethernet | 1 set, 10/100Mbps |
| RS-485 | 1 set |
| Console | RS-232 |
| USB | 1 set, USB 2.0 (480Mbps) |
| SD expansion | 1 Micro SD slot (case must be opened) |
| LED indicators | Power / network / serial / user defined |
| Beeper | 1 |
| Buttons / DIP | DIP x2, tack button x1 |
Mechanical | |
| Dimensions | 130 x 90 x 33 mm |
| Material | Galvanized steel sheet |
Power | |
| Operating voltage | DC 9-24VDC |
| Power connector | 5.00mm pluggable terminal block |
| Power consumption | < 10W |
Software | |
| Operating system | Linux kernel 4.14.x |
Refer to the official datasheet for detailed electrical specifications.
Downloads
Enclosure Version
EBox-AIO-003 Datasheet
Board Version
LLD-AIO-003 Datasheet
Explore More Models
Product line: EBox-AIO Series · Viewing: EBox-AIO-003
