EBox-AIO-009
The EBox-AIO series is built around low-power, high-efficiency Cortex®-Ax CPUs running embedded Linux, positioned for industrial communication and control applications.
mini-PCIe 4G LTE Module
Installs in the internal slot; SIM card not included
Micro SD Storage Expansion
Expands system storage; slot fitted on every model
Product Highlights
Low-Power Compute Core
ARM Cortex-A7 64-bit multi-core RISC processor — low power consumption, suited to continuous operation.
Multiple Communication Interfaces
Ethernet, RS-485, RS-232 and USB interfaces are offered by model, connecting field devices that use different transport standards.
Wireless Expansion
Optional 4G / 5G / Wi-Fi / NB-IoT modules keep the unit connected where no fixed-line network exists.
Embedded Linux OS
Ships with an embedded Linux operating system for deploying your own applications and services.
Field Environment Suitability
Operating temperature −20 to 70 °C at 20–80 % RH — mountable in control cabinets in unconditioned plant rooms.

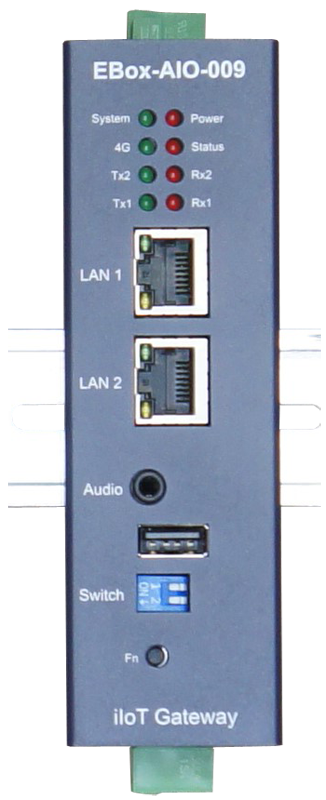

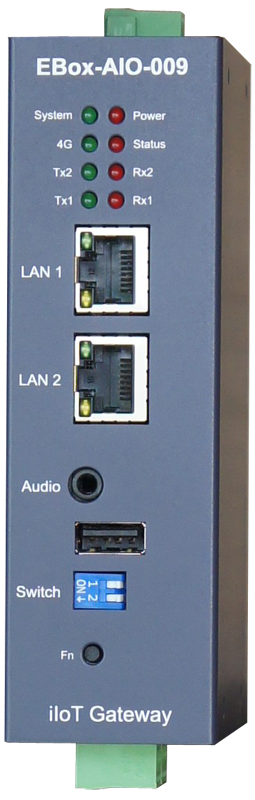

I/O Interfaces
Status LEDs
System status indicators
LAN 1
10/100 Mbps port
LAN 2
10/100 Mbps port
Audio
3.5 mm audio out
USB Port
USB 2.0 (480 Mbps)
DIP Switch
Mode select
Function Key (Fn)
System function button
Modbus-RTU bus
Modbus-RTU bus
Terminal resistor and pull high/low setting
Serial debug console
RS-485 Port 1
Modbus-RTU bus
RS-485 Port 2
Modbus-RTU bus
RS-485 DIP Switch
Terminal resistor and pull high/low setting
Debug
Serial debug console
Power In
DC 9–24V power
SIM Slot
Cellular SIM card

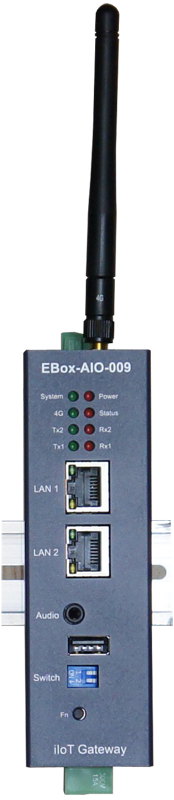

Antenna Holes
External antenna holes
Hardware Specifications
Full datasheet (PDF) →Core | |
|---|---|
| CPU | Allwinner H3 1.2GHz (Cortex®-A7) |
| Memory | 256MB |
| Storage | 4GB eMMC (capacity configurable) |
| GPIO | 10 points |
I/O Interfaces | |
| Ethernet | 2 sets, 10/100Mbps |
| RS-485 | 2 sets |
| Console | RS-232 |
| USB | 1 set, USB 2.0 (480Mbps) |
| Wireless expansion | ✓ |
| SD expansion | 1 Micro SD slot (case must be opened) |
| Dedicated expansion slot | I2C / USB / SPI / UART / GPIO |
| LED indicators | Power / network / serial / user defined |
| Beeper | 1 |
| Buttons / DIP | DIP x2, tack button x1 |
| Audio | 3.5mm |
Mechanical | |
| Dimensions | 102.6 x 130.8 x 40 mm |
| Material | Galvanized steel sheet |
| Mounting | DIN rail |
Power | |
| Operating voltage | DC 9-24VDC |
| Power connector | 5.00mm pluggable terminal block |
| Power consumption | < 10W |
Software | |
| Operating system | Linux kernel 4.14.x |
| Built-in services | SSH / Web server / MySQL / PHP / python / gcc / apt-get |
Refer to the official datasheet for detailed electrical specifications.
