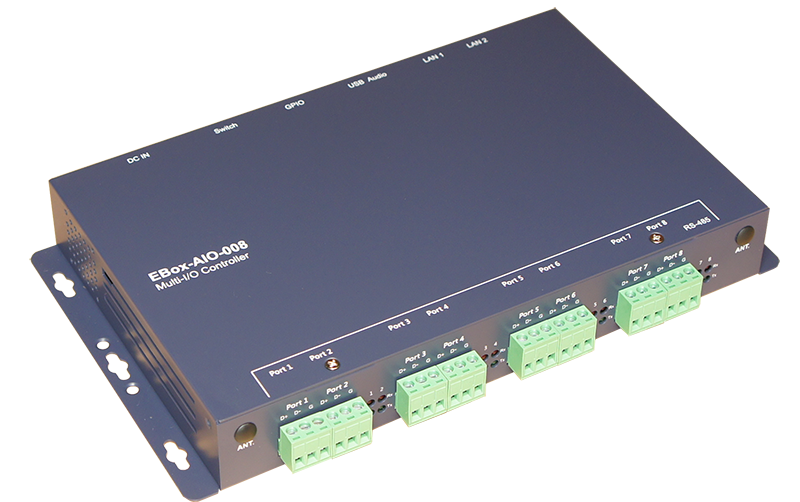

EBox-AIO-008
The EBox-AIO series is built around low-power, high-efficiency Cortex®-Ax CPUs running embedded Linux, positioned for industrial communication and control applications.
mini-PCIe 4G LTE Module
Installs in the internal slot; SIM card not included
Micro SD Storage Expansion
Expands system storage; slot fitted on every model
M.2 2242 SATA III SSD
Internal M.2 2242 slot for a SATA III solid-state drive
Product Highlights
Low-Power Compute Core
ARM Cortex-A7 64-bit multi-core RISC processor — low power consumption, suited to continuous operation.
Multiple Communication Interfaces
Ethernet, RS-485, RS-232 and USB interfaces are offered by model, connecting field devices that use different transport standards.
Embedded Linux OS
Ships with an embedded Linux operating system for deploying your own applications and services.
Field Environment Suitability
Operating temperature −20 to 70 °C at 20–80 % RH — mountable in control cabinets in unconditioned plant rooms.

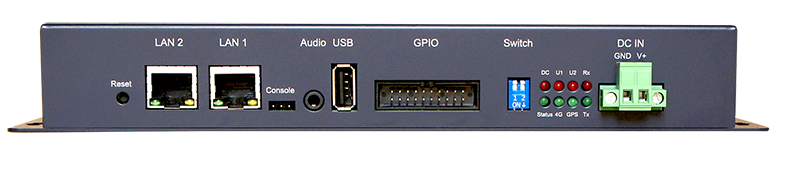

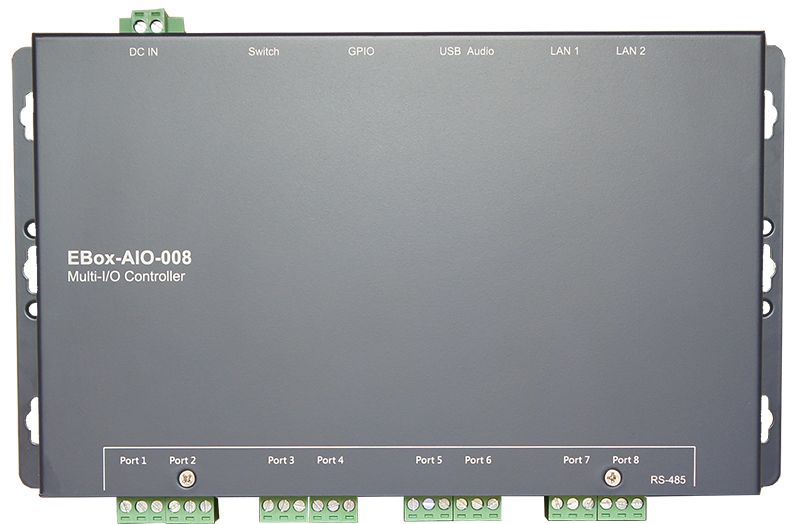

I/O Interfaces
RS-485 Ports 1–4
Modbus-RTU bus
RS-485 Ports 5–8
Modbus-RTU bus
Reset
System reset button
LAN 2
10/100 Mbps port
LAN 1
10/100 Mbps port
Console
Serial debug console
Audio
3.5 mm audio out
USB Port
USB 2.0 (480 Mbps)
GPIO
Digital I/O points
DIP Switch
Mode select
Status LEDs
System status indicators
Power In
DC power input
Hardware Specifications
Full datasheet (PDF) →Core | |
|---|---|
| CPU | Allwinner H3 1.2GHz (Cortex®-A7) |
| Memory | 512MB |
| Storage | 8GB eMMC (capacity configurable) |
| GPIO | 17 points |
I/O Interfaces | |
| Ethernet | 2 sets, 10/100Mbps |
| RS-485 | 8 sets |
| Console | UART-TTL |
| USB | 1 set, USB 2.0 (480Mbps) |
| Wireless expansion | ✓ |
| SD expansion | 1 Micro SD slot (case must be opened) |
| GPS | GPS / BDS / GLONASS |
| LED indicators | Power / network / serial / user defined |
| Beeper | 1 |
| Buttons / DIP | DIP x2, tack button x1 |
| Audio | 3.5mm stereo |
Mechanical | |
| Dimensions | 245 x 140 x 35 mm |
| Material | Galvanized steel sheet |
Power | |
| Operating voltage | DC 9-24VDC |
| Power connector | 5.00mm pluggable terminal block |
| Power consumption | < 15W |
Software | |
| Operating system | Linux kernel 4.14.x |
| Built-in services | SSH / ftp / python / gcc / g++ / apt-get |
Refer to the official datasheet for detailed electrical specifications.
Downloads
EBox-AIO-008 Datasheet
Explore More Models
Product line: EBox-AIO Series · Viewing: EBox-AIO-008
