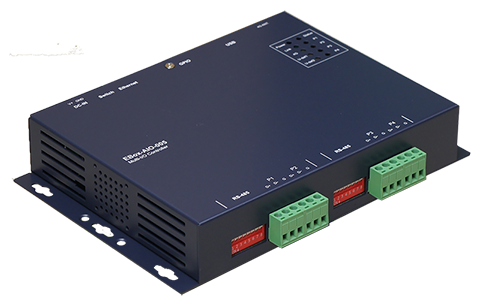

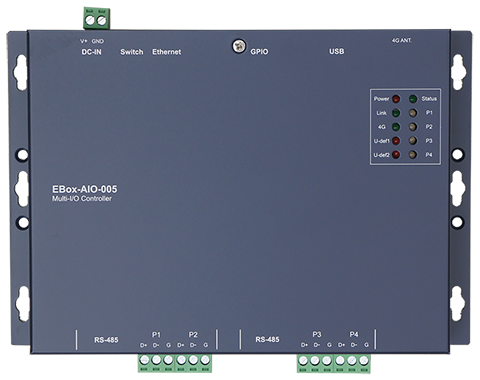

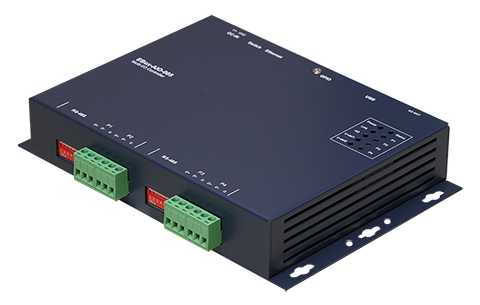

EBox-AIO-005
The EBox-AIO series is built around low-power, high-efficiency Cortex®-Ax CPUs running embedded Linux, positioned for industrial communication and control applications.
mini-PCIe 4G LTE Module
Installs in the internal slot; SIM card not included
Micro SD Storage Expansion
Expands system storage; slot fitted on every model
Product Highlights
Low-Power Compute Core
ARM Cortex-A7 64-bit multi-core RISC processor — low power consumption, suited to continuous operation.
Multiple Communication Interfaces
Ethernet, RS-485, RS-232 and USB interfaces are offered by model, connecting field devices that use different transport standards.
Embedded Linux OS
Ships with an embedded Linux operating system for deploying your own applications and services.
Wireless Expansion
Optional 4G / 5G / Wi-Fi / NB-IoT modules keep the unit connected where no fixed-line network exists.
Field Environment Suitability
Operating temperature −20 to 70 °C at 20–80 % RH — mountable in control cabinets in unconditioned plant rooms.
I/O Interfaces
Power In
DC power input
DIP Switch
Mode select
Ethernet
10/100 Mbps port
GPIO
Digital I/O points
USB Port
USB 2.0 (480 Mbps)
4G Antenna
External 4G antenna hole
Status LEDs
System status indicators
RS-485 P1 / P2
Modbus-RTU bus
RS-485 P3 / P4
Modbus-RTU bus

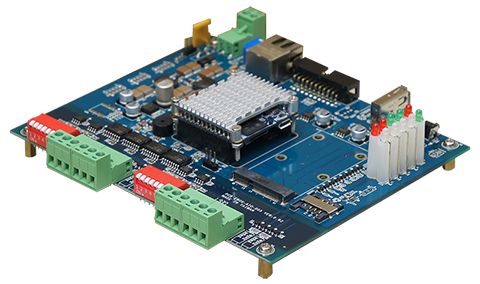

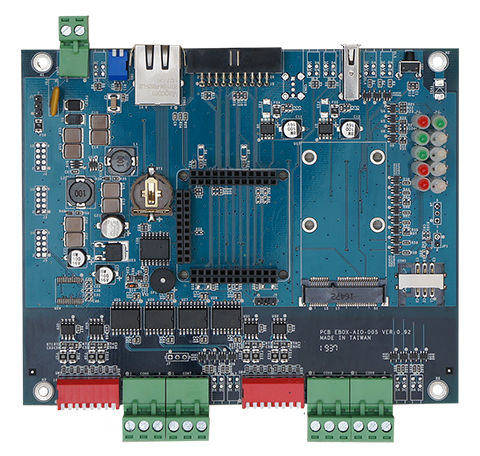

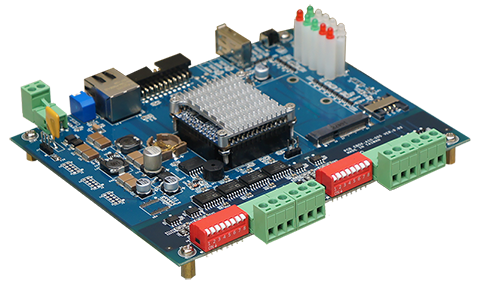

Board Version
LLD-AIO-005
Host core module: NanoPi NEO Core
1-Channel RS-485 serial equipment data transmission communication
1-Channel RS-232 serial equipment data transmission communication (Optional)
16 Digital Control Points (GPIO)
Hardware Specifications
Full datasheet (PDF) →Core | |
|---|---|
| CPU | Allwinner H3 1.2GHz (Cortex®-A7) |
| Memory | 512MB |
| Storage | 8GB eMMC (capacity configurable) |
| GPIO | 17 points |
I/O Interfaces | |
| Ethernet | 1 set, 10/100Mbps |
| RS-485 | 4 sets |
| Console | UART |
| USB | 1 set, USB 2.0 (480Mbps) |
| Wireless expansion | ✓ |
| SD expansion | 1 Micro SD slot (case must be opened) |
| LED indicators | Power / network / serial / user defined |
| Beeper | 1 |
| Buttons / DIP | DIP x2, tack button x1 |
Mechanical | |
| Dimensions | 192 x 131 x 35 mm |
| Material | Galvanized steel sheet |
Power | |
| Operating voltage | DC 9-24VDC |
| Power connector | 5.00mm pluggable terminal block |
| Power consumption | < 10W |
Software | |
| Operating system | Linux kernel 4.14.x |
| Built-in services | SSH / ftp / python / gcc / g++ / apt-get |
Refer to the official datasheet for detailed electrical specifications.
Downloads
Enclosure Version
EBox-AIO-005 Datasheet
Board Version
LLD-AIO-005 Datasheet
Explore More Models
Product line: EBox-AIO Series · Viewing: EBox-AIO-005
