EBox-AIO-006
The EBox-AIO series is built around low-power, high-efficiency Cortex®-Ax CPUs running embedded Linux, positioned for industrial communication and control applications.
Micro SD Storage Expansion
Expands system storage; slot fitted on every model
Product Highlights
Low-Power Compute Core
ARM Cortex-A7 64-bit multi-core RISC processor — low power consumption, suited to continuous operation.
Multiple Communication Interfaces
Ethernet, RS-485, RS-232 and USB interfaces are offered by model, connecting field devices that use different transport standards.
Embedded Linux OS
Ships with an embedded Linux operating system for deploying your own applications and services.
Field Environment Suitability
Operating temperature −20 to 70 °C at 20–80 % RH — mountable in control cabinets in unconditioned plant rooms.

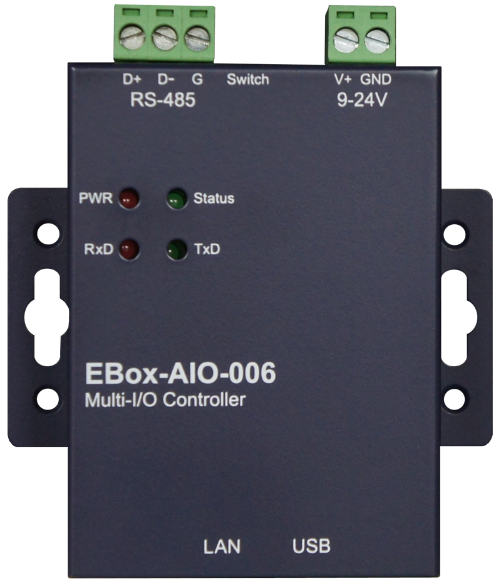

I/O Interfaces
RS-485
Modbus-RTU bus

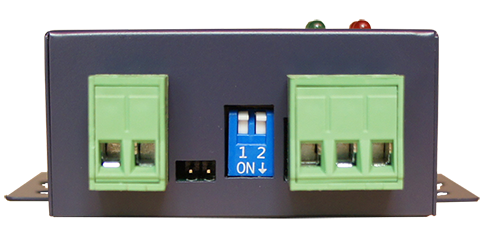

DIP Switch
Mode select
Power In
DC 9–24V power
Status LEDs
System status indicators

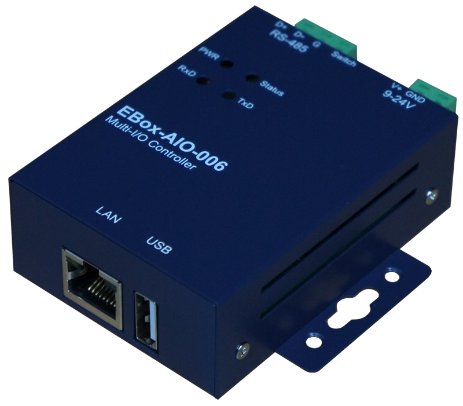

Ethernet
10/100 Mbps port
USB Port
USB 2.0 (480 Mbps)
Hardware Specifications
Full datasheet (PDF) →Core | |
|---|---|
| CPU | Allwinner H3 1.2GHz (Cortex®-A7) |
| Memory | 256MB |
| Storage | 16GB microSD (capacity configurable) |
| GPIO | 4 points |
I/O Interfaces | |
| Ethernet | 1 set, 10/100Mbps |
| RS-485 | 1 set |
| Console | UART-TTL |
| USB | 1 set, USB 2.0 (480Mbps) |
| Wireless expansion | ✓ |
| SD expansion | 1 Micro SD slot (case must be opened) |
| LED indicators | Power / network / serial |
| Beeper | 1 |
| Buttons / DIP | DIP x2 |
Mechanical | |
| Dimensions | 75 x 75 x 26 mm |
| Material | Galvanized steel sheet |
| Mounting | Wall mount / DIN rail |
Power | |
| Operating voltage | DC 9-24VDC |
| Power connector | 5.00mm pluggable terminal block |
| Power consumption | < 10W |
Software | |
| Operating system | Linux kernel 4.14.x |
| Built-in services | SSH / ftp / python / gcc / g++ / apt-get |
Refer to the official datasheet for detailed electrical specifications.
