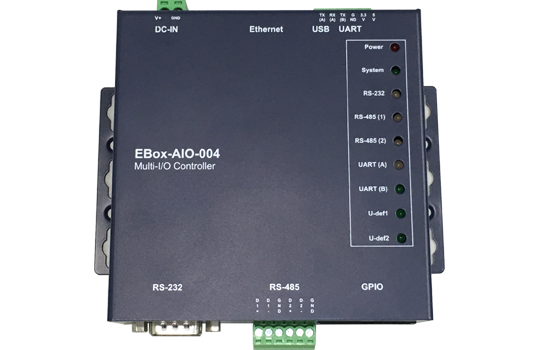

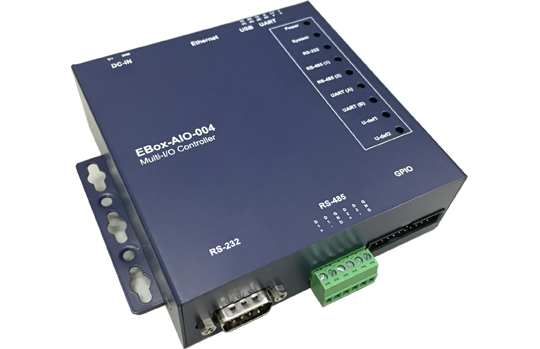

EBox-AIO-004
The EBox-AIO series is built around low-power, high-efficiency Cortex®-Ax CPUs running embedded Linux, positioned for industrial communication and control applications.
Micro SD Storage Expansion
Expands system storage; slot fitted on every model
Product Highlights
Low-Power Compute Core
ARM Cortex-A8 32-bit RISC processor — low power consumption, suited to continuous operation.
Multiple Communication Interfaces
Ethernet, RS-485, RS-232 and USB interfaces are offered by model, connecting field devices that use different transport standards.
Embedded Linux OS
Ships with an embedded Linux operating system for deploying your own applications and services.
Field Environment Suitability
Operating temperature 0 to 70 °C at 20–80 % RH — mountable in control cabinets in unconditioned plant rooms.
I/O Interfaces
Power In
DC power input
Ethernet
10/100 Mbps port
USB Port
USB 2.0 (480 Mbps)
UART
3.3 V serial interface
Status LEDs
System status indicators
RS-232
Serial device interface
RS-485
Modbus-RTU bus
GPIO
Digital I/O points
Board Version

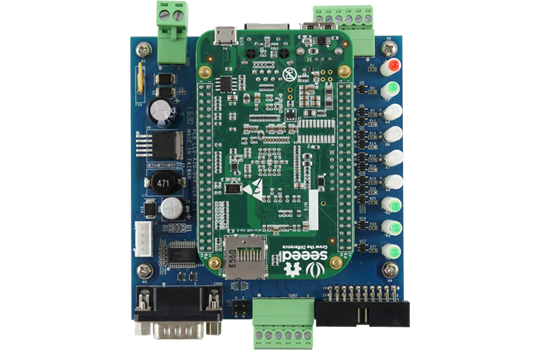

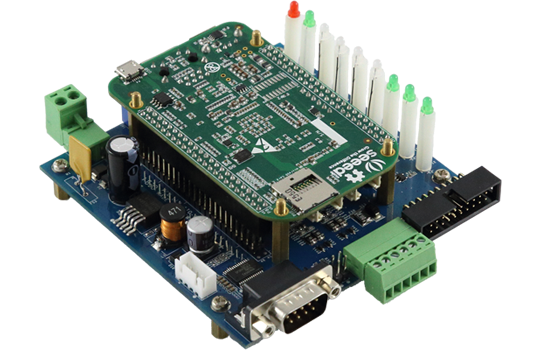

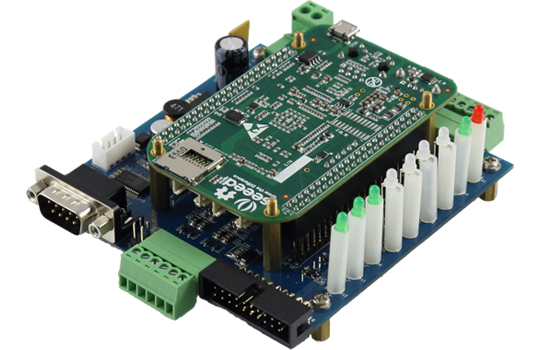

LLD-AIO-004
Host core module: BeagleBone Green
1-Channel RS-485 serial equipment data transmission communication
1-Channel RS-232 serial equipment data transmission communication (Optional)
2-Channel 3.3V UART serial equipment data transmission communication
16 Digital Control Points (GPIO)
Hardware Specifications
Full datasheet (PDF) →Core | |
|---|---|
| CPU | TI Sitara AM3358BZCZ100 1GHz (Cortex®-A8) |
| Memory | 512MB |
| Storage | 4GB eMMC (capacity configurable) |
| GPIO | 16 points |
I/O Interfaces | |
| Ethernet | 1 set, 10/100Mbps |
| RS-485 | 2 sets |
| Console | RS-232 |
| USB | 1 set, USB 2.0 (480Mbps) |
| Wireless expansion | ✓ |
| SD expansion | 1 Micro SD slot (case must be opened) |
| LED indicators | Power / network / serial / user defined |
| Beeper | 1 |
| Buttons / DIP | DIP x2 |
Mechanical | |

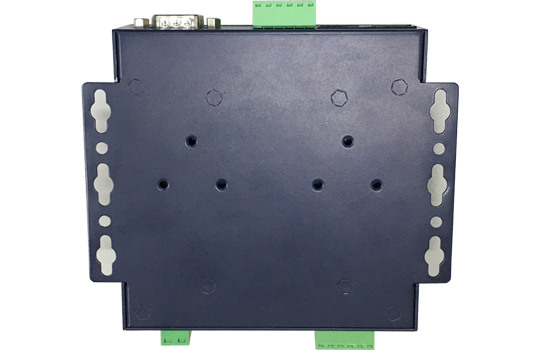

| Dimensions | 124 x 105 x 32 mm |
| Material | Galvanized steel sheet |
Power | |
| Operating voltage | DC 9-24VDC |
| Power connector | 5.00mm pluggable terminal block |
| Power consumption | < 10W |
Software | |
| Operating system | Linux kernel 4.14.x |
| Built-in services | SSH / Web server / MySQL / PHP / python / gcc / apt-get |
Refer to the official datasheet for detailed electrical specifications.
